High pressure stacking models

  • security

20+ safety checkpoints, 100%Aging test

  • Cryogenic Technology

-40℃ low temperature, stable operation of cold storage Operation

  • BMS self-developed

15 years of automotive-grade BMS technology Iteration

  • Split-port technology

Complete isolation of charging and discharging

  • AGV-specific SOC algorithm

Full Process Autonomous Dynamic Learning Algorithms

  • Multi-cell parallel technology

Automatic protection against parallel circulating currents

  • Fast charging technology

2C fast charging, 30 minutes full

  • High voltage high current technology

96V-800V/300A-600A

Category: Tag:

Description

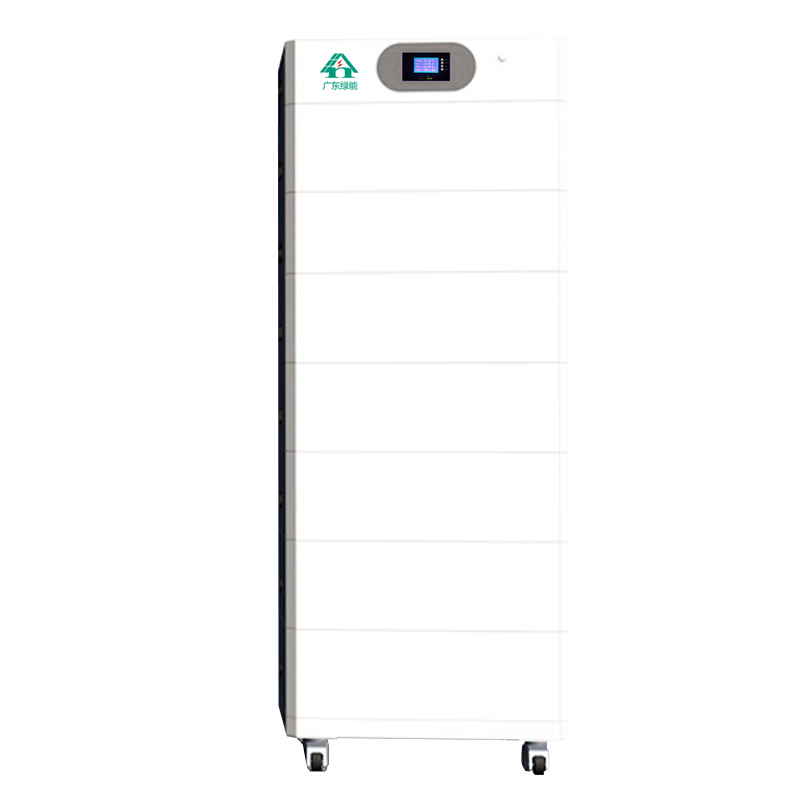

High pressure stacking models
Styles 230V50Ah 307V50Ah 384V50Ah 460V50Ah
Nominal voltage 230V 307V 384V 460V
Rated capacity 50Ah 50Ah 50Ah 50Ah
Charge cut-off voltage 263V 35ov 483V 525v
Discharge cut-off voltage 191V 254V 318V 382V
Standard charging current 25A 25A 25A 2SA
Maximum charge heart flow 50A 50A 50A 50A
Standard discharge current 25A 25A 25A 25A
Maximum discharge current 50A 50A 50A 50A
Maximum peak current 100A 100A 100A 100A
Communication method RS485/CAN
Charge/discharge by port M8 stud/insulated waterproof terminal (terminal optional)
Communication Interface RJ45
Housing material/color Metal/Black (color optional)
Size 460*330*480 460*330*640 460*330*780 600*600*1600
Weight 100kg (About) 170kg (About) 280kg(About) 350kg (About)
Temperature range Charging:oC-5o°℃
Disharging: -15C-60°℃
