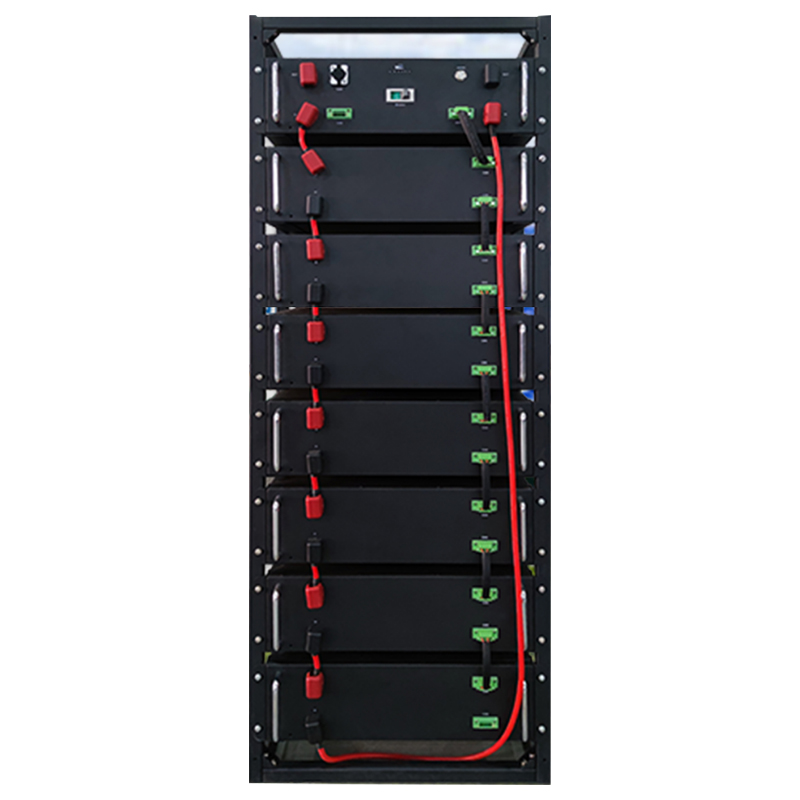

High voltage – cabinet models

20+ safety checkpoints, 100%Aging test

-40℃ low temperature, stable operation of cold storage Operation

15 years of automotive-grade BMS technology Iteration

Complete isolation of charging and discharging

Full Process Autonomous Dynamic Learning Algorithms

Automatic protection against parallel circulating currents

2C fast charging, 30 minutes full

96V-800V/300A-600A

Description

High voltage – cabinet models
Styles	192V100Ah 205V10OAh	240V10OAh 256V10OAh	288V10OAh 307V100Ah	336V10OAh 358V100Ah
Nominal voltage	240V 256v	288V 307V	336v 358V	384V 410V
Rated capacity	100Ah
Charge cut-off voltage	219v 233v	273v 292v	328V 35ov	383v 408V
Discharge cut-off voltage	15oV 160v	187V 20ov	225V 239v	262v 279V
Standard charging current	5OA	50A	5OA	50A
Maximum charge heart flow	100A	100A	100A	100A
Standard discharge current	5OA	50A	5oA	50A
Maximum discharge current	100A	100A	100A	100A
Maximum peak current	15OA	150A	150A	150A
Communication method	RS485/CAN
Charge/discharge by port	Waterproof snap-in terminals
Communication Interface	R45
Housing material/color	Metal/Black (color optional)
Size	4605651140mm	4605651320mm	4605651500mm	4605651680mm
Weight	245kg (About)	29okg (About)	340kg (About	380kg (About)
Temperature range	Charging:oC-5o°℃ Disharging: -15C-60°℃
